in zinc plated steel
Part.
  701-702-703


.

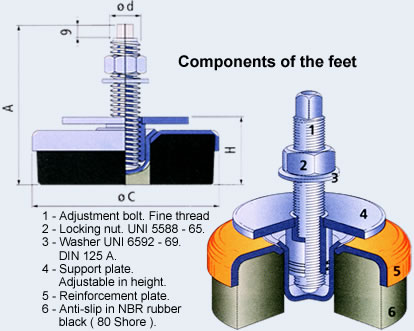

Ø C
mm

 .
Code
Feet in zinc
plated steel 		.
Code
Feet in zinc plated
steel with yellow
painted base		 .
Weight Kg
Part. 701
M12X1,25 130 39(min) 8 701/63033 701/63623 0,58
51(max)
Part. 702
M16X1,5 130 47(min) 9 702/63043 702/63633 1,40
60(max)
Part. 703
M20X1,5 183 54(min) 12 703/63053 703/63643 2,80
69(max)
  • Packaging : 8 pieces (for Part. 701 - 702), 4 pieces (for Part. 703).
  • Characteristics : specially designed to absorb vibrations and shocks in both horizontal and vertical directions. Accurate height adjustments. High adhesion to the floor.
  • Application : cutting-and bending machines for sheet metal. Injection molding machines for plastics. Lathes, cutting-and grinding machines. Machines for the textile and printing industry.
Table 1
Load applied per foot (Kgf)
min.
max.
min.
max.
min.
max.

Part. 701
Part. 702
Part. 703
100 85 360 230 940 275 1420
120 85 210 230 600 275 900
140 85 180 230 560 275 820
160 85 120 230 350 275 560
180 85 95 230 290 275 440
200   230 260 275 320
220   275 305

Zone of resonance
(do not use vibration absorbing elements)
1200 475 525 1140 1260 1710 1890
1400 400 525 1040 1260 1650 1890
1600 320 525 810 1260 1340 1890
1800 240 525 640 1260 1080 1890
2000 180 525 490 1260 800 1890
2200 140 525 440 1260 700 1890
2400 120 525 380 1260 640 1890
2600 100 525 300 1260 560 1890
2800   240 1260 420 1890
3000   200 1260 400 1890
3500   300 1890

When to use vibration absorbing feet

In case in a machine frequent "vibrations or shocks" occur, it will be necessary to use vibration absorbing feet instead of our standard feet. Because of the natural characteristics of the rubber elements, the selection of the proper type is very important. In a certain range of vibrations or shocks a resonance will occur, in another range of vibrations the feet will not absorb any vibrations at all. It is therefore important to follow exactly our selection procedure. Selection procedure.

Selection procedure

1) Calculation of the load on each foot
In the following formula we have considered that the weight of the machine is divided equally over the feet :
Weight of the machine (Kg)  = (Kgf)
Number of feet

2) Selection of the type of vibration absorbing foot -Table 1
The selection of the type of a vibration absorbing foot depends on the load on each foot and the lowest number of revolutions (or number of shocks) of the machine.

Examples of selection
1) Support for a lathe
Given data:-
-
-		 Weight of the lathe :2200Kg.
Minimum speed :140 rpm.
Quantity of feet :4.
Selection : the load on each foot is

2200
  = 550 Kgf
4
According to table 1 Part. 702 should be taken
1) Support for a metal press
Given data:-
-
-		 Weight of the lathe :3900Kg.
Minimum speed :120 strokes/min.
Quantity of feet :6.
Selection : the load on each foot is
  3900  = 650 Kgf
6
According to table 1 Part. 702 should be taken.

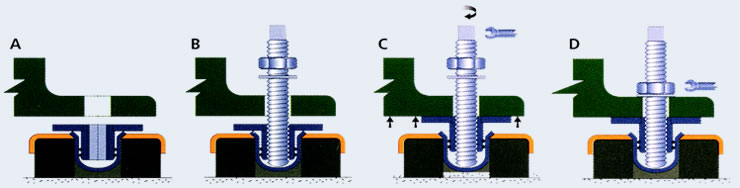

Mounting instructions
A) Lift the machine. Position the footplate. B) Mount the adjustment bolt with the nut and washer. C) By turning the adjustment bolt further, the support plate will lift until the desidered height has been reached. D) Lock the adjustment bolt with the nut.
